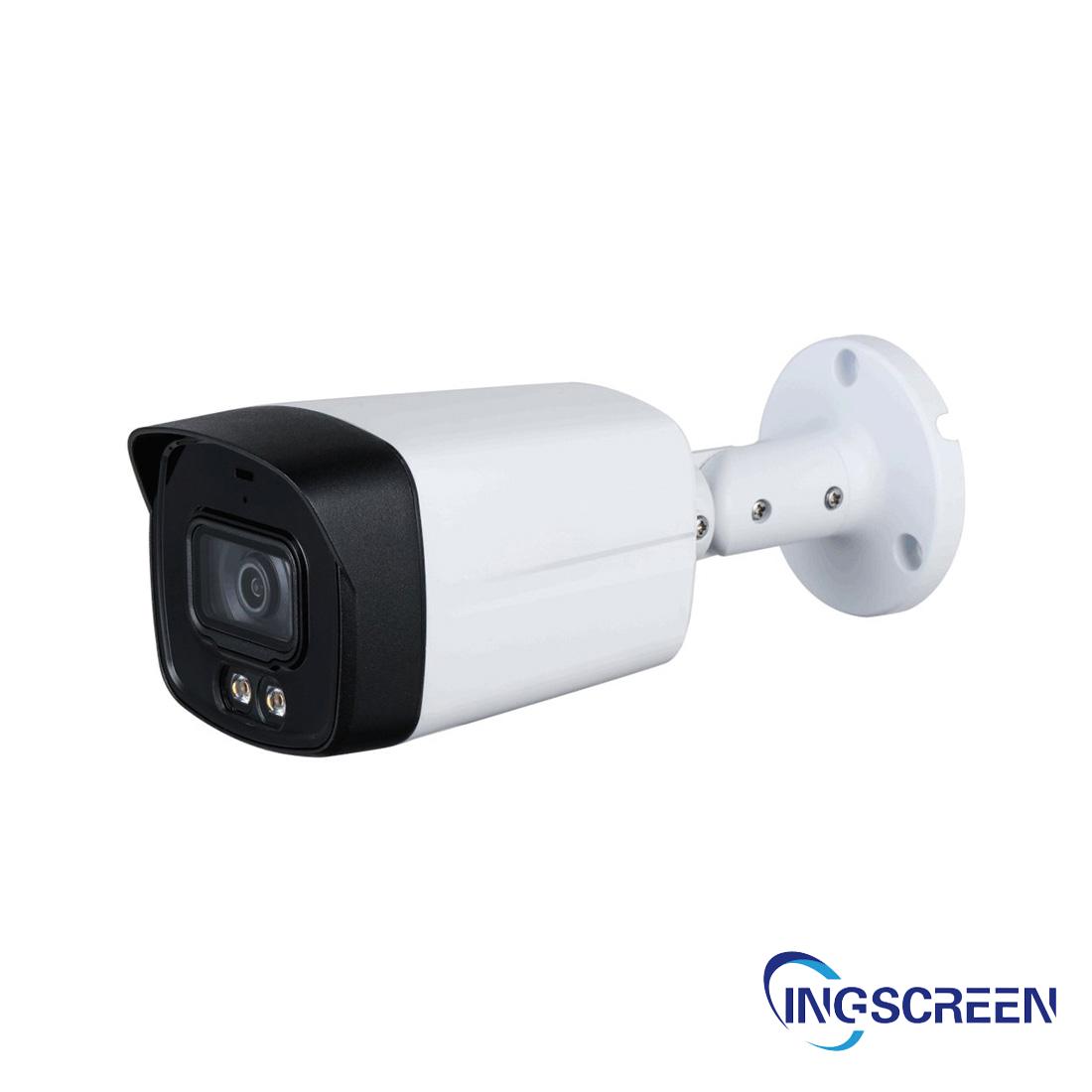

INGS-CAM-2MP-K  IP Video Camera
Camera
Pixels; 2 MP
Matrix; 2 MP CMOS
Maximum resolution; 1920 (G) × 1080 (H)
Scanning system; Progressive
Electronic shutter speed; PAL: 1/25 s – 1/100 000 s NTSC: 1/30 s – 1/100 000 s
Minimum illumination; 0.001 lux@F1.6 (color, 30 IRE) 0.0001 lux@F1.6 (b/w, 30 IRE) 0 lux (illuminator
on)
Signal-to-noise ratio; >65 dB
Lighting distance; IR: 40 m Warm light: 40 m
Lighting on/off control; Automatic/Manual
Illuminator number; 2 (IR illumination); 2 (Warm light)
Pan/tilt/Rotation range; Pan: 0°-360° Tilt: 0°-90° Rotation: 0°-360°
The lens
Lens type; Fixed focal length
Lens mount; M12
Focal length; 2.8 mm
Maximum aperture; F1.6
Field of view; 2.8 mm: G: 107°; V: 56°; Angle: 127°
Aperture control; Fixed
Short-range focusing distance; 2.8mm: 0.7m
DORI distance; Lens; Detect; Observe; Recognize; Identify; 2.8 mm; 42.2 m; 16.9 m; 8.4 m; 4.2 m
Video
Video frame rate; CVI: PAL: 1080p@25 frames per second;
NTSC: 1080p@30fps;
AHD: PAL: 1080p@25fps;
NTSC: 1080p@30fps;
TVI: PAL: 1080p@25 frames per second;
NTSC: 1080p@30fps;
CVBS: PAL: 960 × 576H;
NTSC: 960 × 480H
Resolutions; 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night; Auto (ICR)/Color/B/W
BLC; HLC; WDR
WDR; 130 dB
White Balance; Auto; White balance by area
Gain control; Automatic/Manual
Noise reduction; 3D NR
Smart Backlight; Yes
Mirror; Off/On
Privacy masking; Off/On (8 areas, rectangle)
Illuminator; Intelligent IR mode WL; IR mode
Certification
Certificates; CE (EN55032:2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024:2010+A1:2015, EN55035: 2017, EN50130-4: 2011+A1:2014, EN62368-1:2014+A11: 2017)
FCC (CFR 47 FCC, Part 15, Subsection B, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No. 62368-1-14)
Port
Video output; Selection of CVI/TVI/AHD/CVBS video output via one BNC port
Audio input; Single channel built-in microphone (-A)
Power
Power supply; 12V DC ± 30%
Power consumption; Max. 4.0W (DC 12V, LED is on)
Environment
Operating temperature; -40 °C to +60 °C
Operating humidity; <95% (relative humidity), non-condensing
Storage temperature; -40 °C to +60 °C
Protection; IP67
Structure
Body material; Metal front cover + plastic rear barrel + metal bracket
Product dimensions; 198.4 mm × 80.2 mm × 76.2 mm
Package dimensions; 240 mm × 115 mm × 111 mm
Net weight; 0.30 kg
Gross weight; 0.48 kg
Installation; Wall mount; Ceiling mount; Vertical pole mount
Brand
NGS
Article number
NGS-CAM-2MP-K
Code
58098
In the package
20
Basic unit
pcs
Barcode
6923172571359
Volume
0.01 m3
Weight
0.5 kg
Guarantee
3 years old
