Short Description:

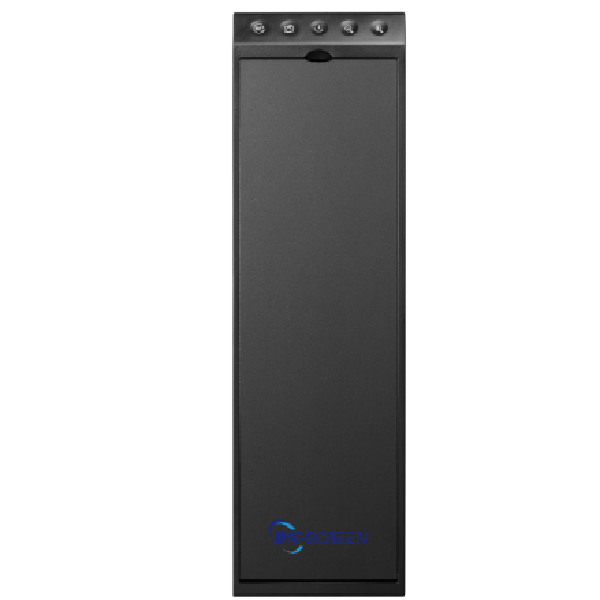

Ingscreen wall mount visualizer.
1.UHD 8 mega pixel CMOS lens.
2.Aluminum unibody design with safety round corner.
3.High foldable slim body.
4.Multiple capacitive touch button for easy operation.
5.Hidden USB port.
Product Detail
| Sensor： | SONY 1/3.2” |
| Pixel： | 8 mega |
| Lens： | F2.2\60° viewing angle |
| Output resolution： | MJPG: 800*600 1024*768 1280*1024 1280*720 1920*1080 2048*1536 2592*1944 3264*2448 3000*4000（Photo support） YUY2: 800*600 1024*768 1280*1024 1280*720 1920*1080 2048*1536 2592*1944 3264*2448（Software support） |
| Ambient illumination range： | 10Lux~2000Lux Optimum working illumination range ：80Lux-300Lux |
| MIC： | Inbuild |
| Output resolution: | 3264*2448 |
| TV line： | >1200线 |
| Video output format: | YUY2，MJPG |
| Focus： | 300mm fixed focus |
| Interface： | USB B |
| Transmission speed： | 10 frame/second 3264*2448 ；30frame/second 720P |
| SNR： | 48db（30frame/second 220LUX） |
| Dynamic range： | 68db |
| Imaging distance： | >5cm |
| Compression Mode： | DSP |
| White balance： | Auto |
| Color compensation： | Auto |
| Working temp： | 0°~45°C |
| Working humidity： | <85% |
| Storage temp: | -20°~ 60°C |
| Storage humidity: | <85% |
| Standby current: | <25 mA |
| Working current： | <300mA |
| Scanning size： | A4 300~350mm |
| Products size: | 45cm*14.5cm*7.5cm |
