Short Description:
Display size: A4/customized
USB port: USB2.0
Sub camera: HD (only for E6320/E5320/E6520 models)
Working Environment: 5V / Current: 270mA-500mA
COMS pixels: E6310/E6320:3 megapixels (2048*1536);E6510/E6520:5 megapixels (2592*1944)
Image Adjustment: Adjustment For Brightness, Exposure, Sharpness And Color & Available For Image Cutting
Product Detail

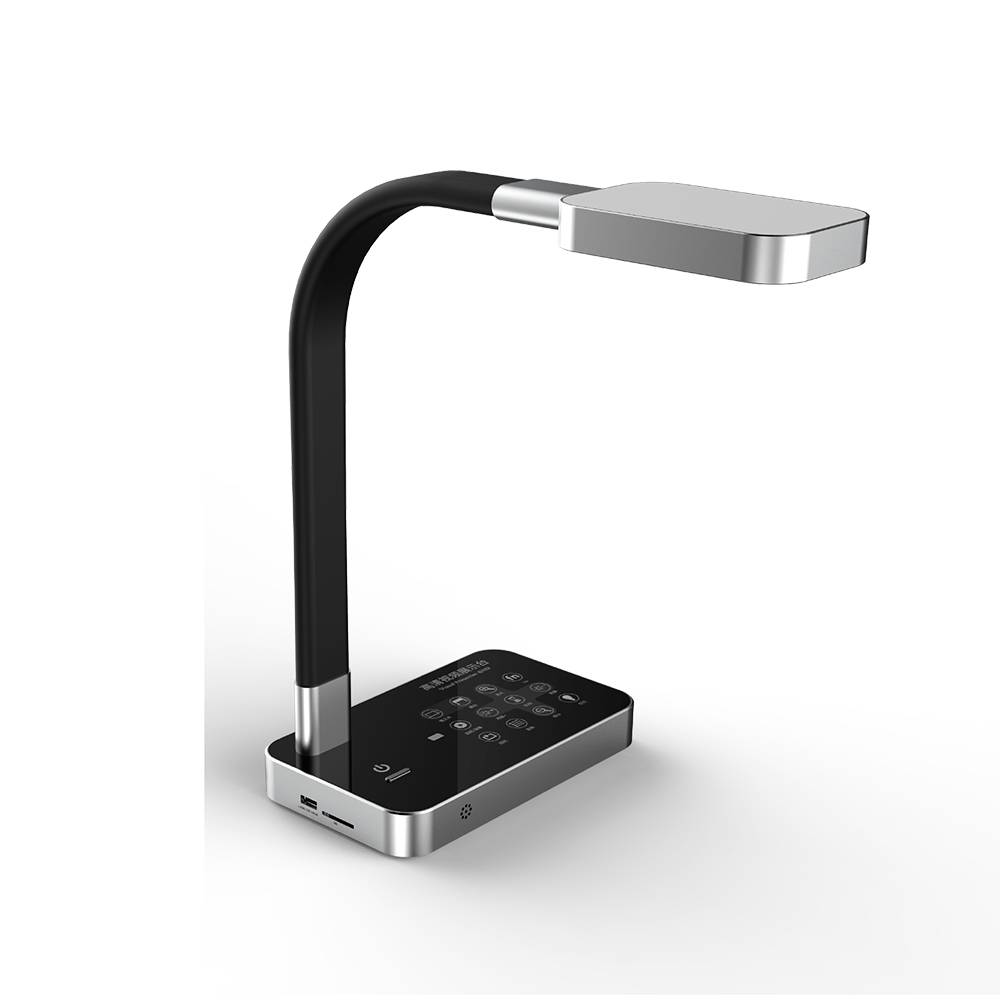

Ingscreen Portable Document Camera is 5 mega pixels CMOS lens,with 22x times optical zooming to get more detail photo/video.The flexible goose neck design make the lens support 360° rotation,easily to get any direction viewing.
Stylish aluminum base with convenience using multiple interfaces and touch control buttons.
| Sensor | 5 mega pixel、2592×1944@30fps 、1/3 inch CMOS |
| Focus | Auto |
| Camera | Rotation camera,support 180 degrees rotation |
| Scanning size | A3 |
| Minimun scan distance | 15cm |
| Control way | Touch panel and remote controls |
| HDMI Output resolution | XGA、SXGA、720P、1080P |
| USB Output | 2592×1944、1920×1080、1280×1024 |
| Image adjustment | Brightness,red,blue,negative/positive,freeze,mirror,black/color,text mode etc |
| OSD | Support annotation without connecting to PC |
| LED Light | 5 levels brightness adjustment |
| Interface | VGA IN×1、VGA OUT×1、HDMI OUT×1、RS232×1 USB Device ×1（USB CAM、U DISK） USB HOST×1（mouse）SD Card ×1 |
| Control panel | Touch acrylic panel,waterproof,dustfree |
| Upgrading way | Support USB upgrading |
| Boot up logo | Customize boot up logo |
| Power supply | DC 5V |
| Consumption | Standby <0.5W, normal<5W |
| Base size | 127mm×216 mm |
| Net weight | 2.5 kg |
