Short Description:
Product Detail

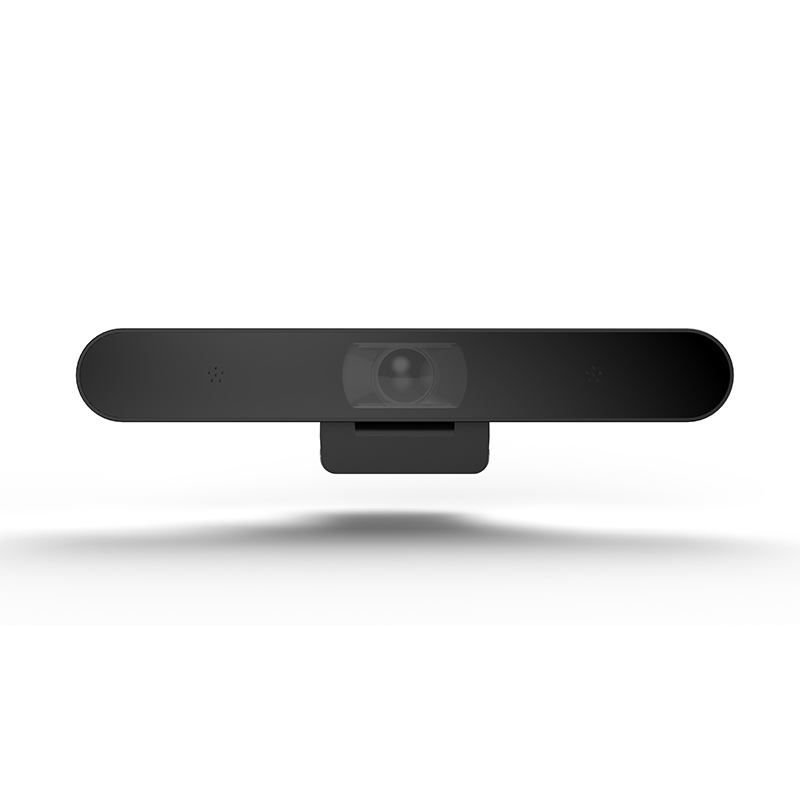

IS-F22UV2/ IS-F28UV2
Features
• 1/2.8” CMOS, 8MP, up to 3840×2160@30fps ;
• 4K wide angle lens, no distortion;
• Support MJPG/YUY2 video compression;
• Support manual image adjustment;
• Support EPTZ;
• Built-in one channel MIC audio in;
• Support UVC protocol;
• Standard Micro USB2.0 interface.
Parameter
|
Model |
IS-F28UV2 |
IS-F22UV2 |
|
Image Sensor |
1/2.5″ CMOS，8MP |
|
|
Video Format |
YUY2： 1920×1080，320×240，640×480，800×600，1024×768，1280×720 MJPG： 1920×1080，320×240，640×480，800×600，1024 x768，1280×720，3840×2160 |
|
|
Focal |
f=2.8mm |
f=2.2mm |
|
Iris |
F2.4 |
F1.8 |
|
FOV |
98° |
112° |
|
Min.Illumination |
1 Lux @ (F1.8, AGC ON) |
|
|
AGC |
Auto, Manual |
|
|
White Balance |
Auto, Manual |
|
|
Exposure |
Auto, Manual |
|
|
SN Ratio |
≥50dB |
|
|
Interface |
|
|
|
Control Interface |
1× Micro USB2.0 |
|
|
UVC Protocol |
UVC 1.1 |
|
|
UVC PTZ Control |
Support |
|
|
General |
|
|
|
Power Supply |
DC 5V |
|
|
Power Consumption |
＜2.5W |
|
|
Working Temperature |
0°C ~ + 40°C |
|
|
Storage Temperature |
-20°C ~ +60°C |
|
|
Dimension(LXWXH) |
208mm×56mm×48mm |
|
|
Weight |
0.22KG |
|
|
Color |
Black |
|
