Short Description:

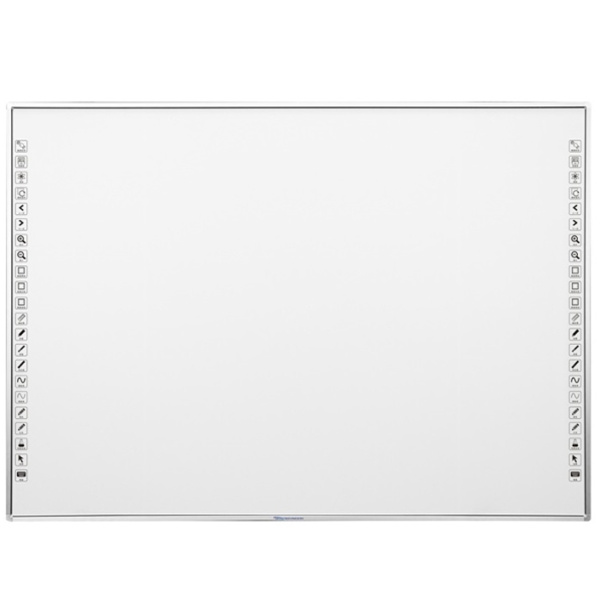

INGSCREEN Interactive Whiteboard is using advanced infrared touching technology with high touch accuracy.Ultra thin aluminum frame design make it with good looking appearance. Allows user use finger or any opaque to draw and write at low cost, no any special pen be needed. With up to 40 multi-points touch interactivity, multi users can write simultaneously.
Product Detail
1.Special touch on and off function to make whiteboard switch between interaction and non-interaction mode.
2.Easy mantainance modular design it is easily to take off broken part and do replacement. Imported international brand Chip to make IR sensor with best performance and durable quality.
3.Free drives support Plug-and-play for convenient connection.
4.Only 0.85cm aluminum frame design with best good looking appearance.
5.Safety round corner design to make sure safe usage.
6.Dual sides 22 hotkeys for more convenient using.
7.Patented self R&D hardware and firmware technology with excellent anti light performance.
8.Metal projection board with ceramic surface and back side with Galvanized metal.
9.Smart pen tray as optional.
10.Support OEM,ODM,SKD,CKD service.
1.Specification
| Touch Size | 81.4″ |
| Touch Activation Force | No pressure required |
| Luminous Transmission | >92%（100% with no glass） |
| Touch Resolution | Without Driver：32768*32768 |
| Touch Response Time（Multi touch） | 10-15ms |
| Touch Response Time（One touch） | 7ms |
| Minimum Recognition Point Size | 4mm*4mm |
| Touch Object Size Recognition | Yes |
| Interface | USB |
2.Electrical Specification
| Refresh Rate | ≥80Hz |
| Communication | USB 2.0 Full Speed |
| Power Supply Mode | USB cable |
| Working Voltage | DC 5.0V±5% |
| Average Current | ≤200mA |
| Power Cunsumption | ≤ 1.0W |
| LED Lifetime | 60000hours |
| Fault-tolerant | Able to work if less than 10% non-consecutive sensors are damaged |
3.Environmental Specification
| Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
| Temperature Range | Working temperature:-10℃～50℃Storage temperature:-20℃～60℃ |
| ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge |
| Anti-light Interference | Yes |
4.Software Specification
| Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 |
| Support OS（Multi touch） | Windows10,Windows8,Windows7,Andriod |
| Support OS （One touch） | WindowsXP,MacOS. |
5.Product Appearance
| Product size（mm） | Touching size(mm) | Projection size(mm) | Package size(mm) | N.W.(KG) | G.W.(KG) |
| 1711.4*1232.4*22.2 | 1674.8*1195.8 | 1594.8*1195.8 | 1825*1345*145(2 pcs per carton) | 27KG(2 pcs per carton) | 34KG(2 pcs per carton) |
