Short Description:

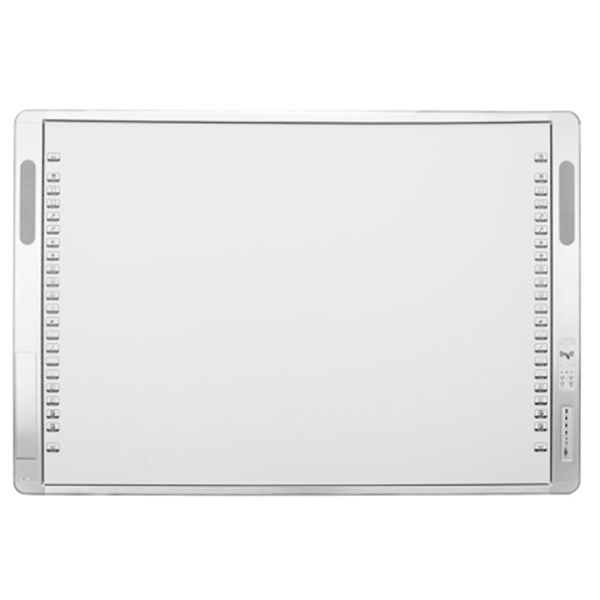

INGSCREEN All In One Interactive Whiteboard is highly integrated with multi-point IR interactive whiteboard,Ducoment camera,Multi media central control system, wireless MIC, stereo amplifier system, OPS PC etc devices, forming perfect multi-media classroom solution together with projector.
With One key power on/off all connected device and abundant interfaces for external device use.
Product Detail
| 96inch | 107inch | 155inch | |
|
Shell material |
aluminum frame and plastic corner |
||
|
Dimensions |
2015.7*1368.5mm*104.6mm | 2354.7*1368.5mm*104.6mm | 3706.7*1368.5*104.6mm |
|
Touch size |
1781*1267mm | 2121*1267mm | 3472*1276mm |
|
Package dimensions |
2149*1522*180mm | 2488*1522*180 mm | 3840*1522*180 mm |
|
Net weight |
45kg | 60kg | 80kg |
1.Electrical parameters
| Input voltage | 90Vac-264Vac, 50/60Hz |
| Maximum power consumption | 85W（PC full load） |
| Standby power consumption | <0.5W |
| Speaker power | 30W*2 |
2. Front port and upper port
| Front port | VGA IN | 1 |
| AUDIO OUT (connected to the amplifier input) | NC | |
| VGA (Audio input) | 1 | |
| USB 2.0 | 1 | |
| USB 3.0 | 1 | |
| USB TOUCH | 1 | |
| HDMI IN | 1 | |
| Upper port | RS232-1/RS232-2 | 2 |
| VGA OUT | 1 | |
| IR | 1（NC） | |
| AUDIO OUT（Amplifier output） | 1 | |
| ADUIO IN(Connect projector audio input) | 1 | |
| Upgrade USB (Engineering use) | 1 | |
| USB 2.0 | 1 | |
| HDMI OUT | 1 | |
| AC IN(110V~220V) | 1 | |
| RC Campus broadcast | 1(Optional) |
3.Network control port (optional)
| LAN LAN port | 2 |
| WAN WAN port | 1 |
| Wireless WIFI | 2.4G |
| Projector quick switch | 1 |
| Source switching | 1 |
| V+ (volume plus) | 1 |
| V- (volume minus) | 1 |
