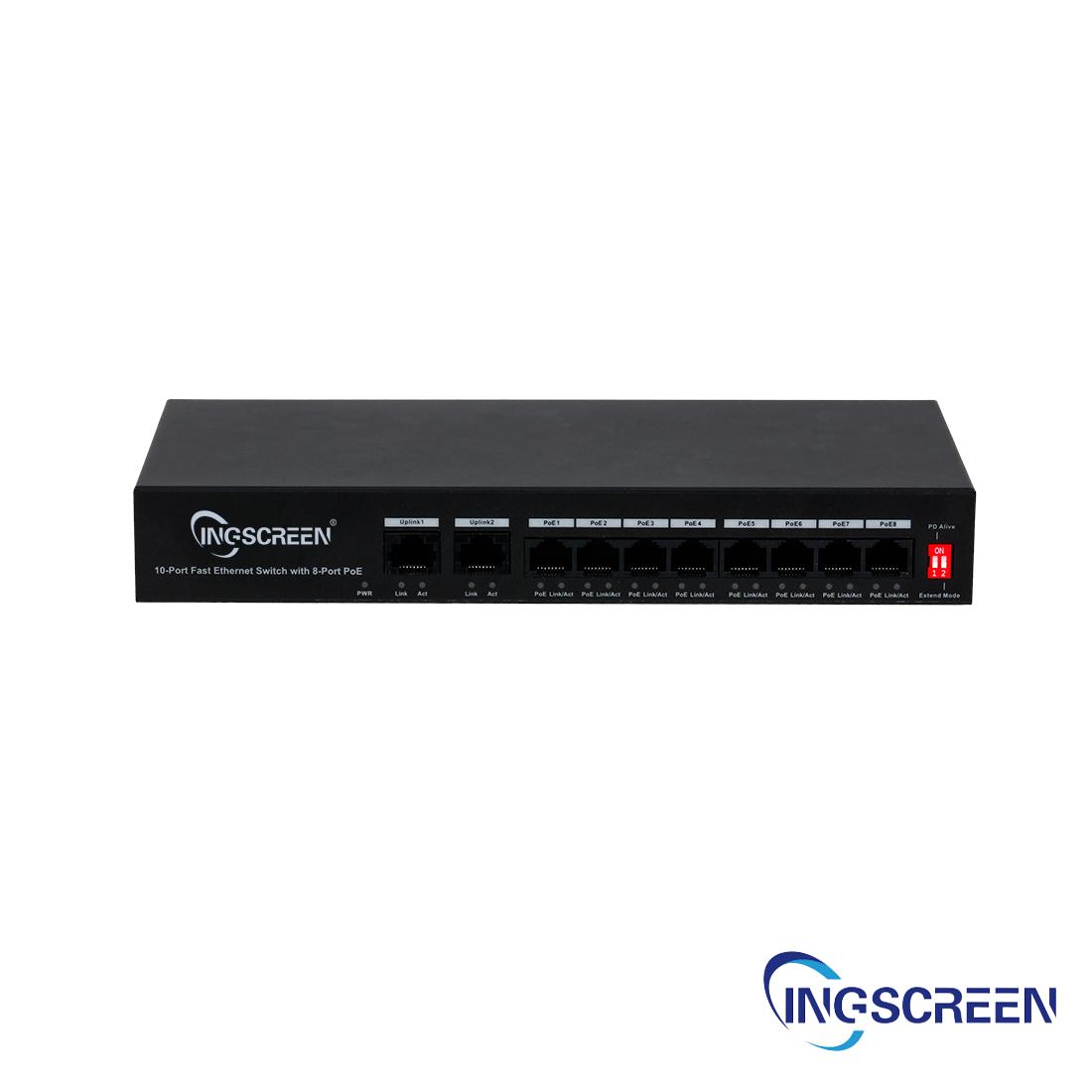

INGS Switch Nano 8008

Structural Elements:

• 8 x Data Transmission Ports: PoE, speed 10/100 Mbps Base-TX
• 2 x Uplink Ports: speed 10/100 Mbps Base-TX Power Supply: 100-240 V AC Operating Temperature: -10°C to 55°C (14°F to 131°F) Operating Humidity: 10% to 90% Power Consumption:
• Idle: 1.0 W
• Full Load: 65 W PoE:
• PoE Power Budget: Ports 1-8 ≤ 30 W, total PoE power budget ≤ 65 W
• PoE Standards: IEEE802.3af, IEEE802.3at
• PoE Pinout: PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) Performance:
• Switching Capacity: 2.0 Gbps
• Packet Forwarding Rate: 1.49 million packets/s
• MAC Address Table Size: 2K entries
• Jumbo Frames: 2048 bytes Communication Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3X Protection:
• ESD Protection: Air discharge: 8 kV, Contact discharge: 6 kV
• Lightning Protection: Common mode: 6 kV, Differential mode: 4 kV Net Weight: 0.76 kg (1.68 lbs) Gross Weight: 1.3 kg (2.87 lbs) Device Dimensions (W x D x H): 242.5 mm × 122.9 mm × 35.0 mm (9.55″ × 4.84″ × 1.38″) Packaging Dimensions (W x D x H): Box: 303 mm × 262 mm × 72 mm (11.92″ × 10.31″ × 2.83″)

Packaging: 10 units Basic Unit: piece Barcode: 6939554946950 Volume: 0.01 m3 Weight: 1.31 kg
