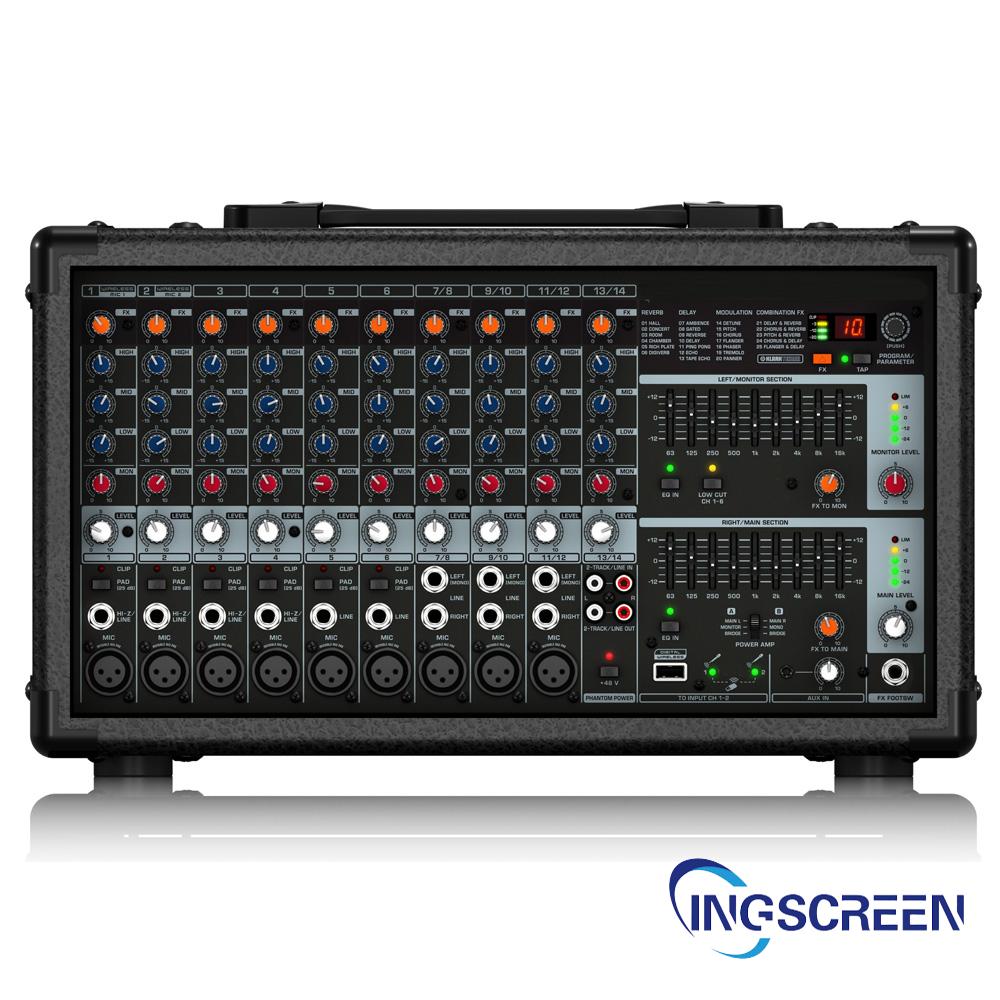

The INGS L2000 is an active 14-channel mixer with an amplifier with a KLARK TEKNIK processor and wireless connectivity. Its peak power is 2000 watts (in stereo, dual mono or bridge mono mode), and it is provided by a Class D amplifier: it eliminates the need for massive power supplies and radiators, which allows you to design powerful and lightweight products using less energy.

The INGS L2000 has 9 IMP microphone preamps with switchable +48V phantom power for condenser microphones. The preamps provide a very impressive 130 dB of dynamic range with a bandwidth from 10 Hz to 200 kHz. They are ideal for any microphone with up to 60 dB gain and +48V phantom power. There are 6 mono inputs available, 4 of which can operate in high-impedance mode for direct instrument connection. 4 channels work in stereo mode, you can connect external sources to the aux in connector on a 3.5 mm mini-Jack, there are also two stereo RCA pairs – for input and output. The KLARK TEKNIK effects processor can offer 25 studio-quality effects: they can be applied to any track, and they include reverbs, delays, a pitch corrector and various multi-effects, including a nine-band stereo graphic equalizer. The processor works with a 24-bit engine for better sound quality.

The wireless functionality of the INGS L2000 includes the ability to connect to ULM series microphones (sold separately)

Main Features
Active 14-channel mixer with amplifier
Class D amplifier with peak power of 2000 Watts in bridge mode
KLARK TEKNIK effects processor with a 24-bit bit engine and 25 studio-quality effects
6 mono inputs, 4 work including in high-impedance mode for direct connection of instruments; 4 stereo channels, you can connect external sources to the aux in connector on a 3.5mm mini-Jack, there are stereo RCA input/output
9 IMP microphone preamps with switchable phantom power +48V
130 dB of dynamic range for preamps with a bandwidth from 10 Hz to 200 kHz
Dual 9-band graphic master equalizer, three-band equalizers on each channel
The ability to connect to ULM series wireless microphones (not included)
Technical Specifications
Two-channel amplifier, class D
Frequency range <20 Hz – 22 kHz (-1 dB, mic in), 20 Hz – 20 kHz (graphic equalizers)
The coefficient of nonlinear distortion is 0.002% (mic in)
Input impedance 1.5 kOhm (balanced connection, mic in), 10 kOhm (unbalanced connection to line inputs), 20 kOhm (balanced connection to line inputs); 1.8 mOhm (balanced connection Hi-Z), 1 mOhm (unbalanced connection Hi-Z)
Output power per channel, peak (load resistance) 500 W/channel (8 ohms), 1000 W/channel (4 ohms), 2000 W (8 ohms, bridge)
Maximum input level +13 dB with attenuator (mic in), +22 dB (Hi-Z/line in),
Attenuator -25 dB
The signal-to-noise ratio is 98 dB
Low frequency filter, 100 Hz, 18 dB/oct, Butterworth filter
Inputs 9 x XLR-F, 12 x 1/4″ TS Jack, 1 x 1/4″ TS Jack footswitch, 2 x RCA, 1 x 1/8” TRS mini-Jack 3.5mm
Outputs 2 x Neutrik NL4 Speakon, 2 x RCA
Other Connectors 1 x USB-A
Power consumption 180 W
