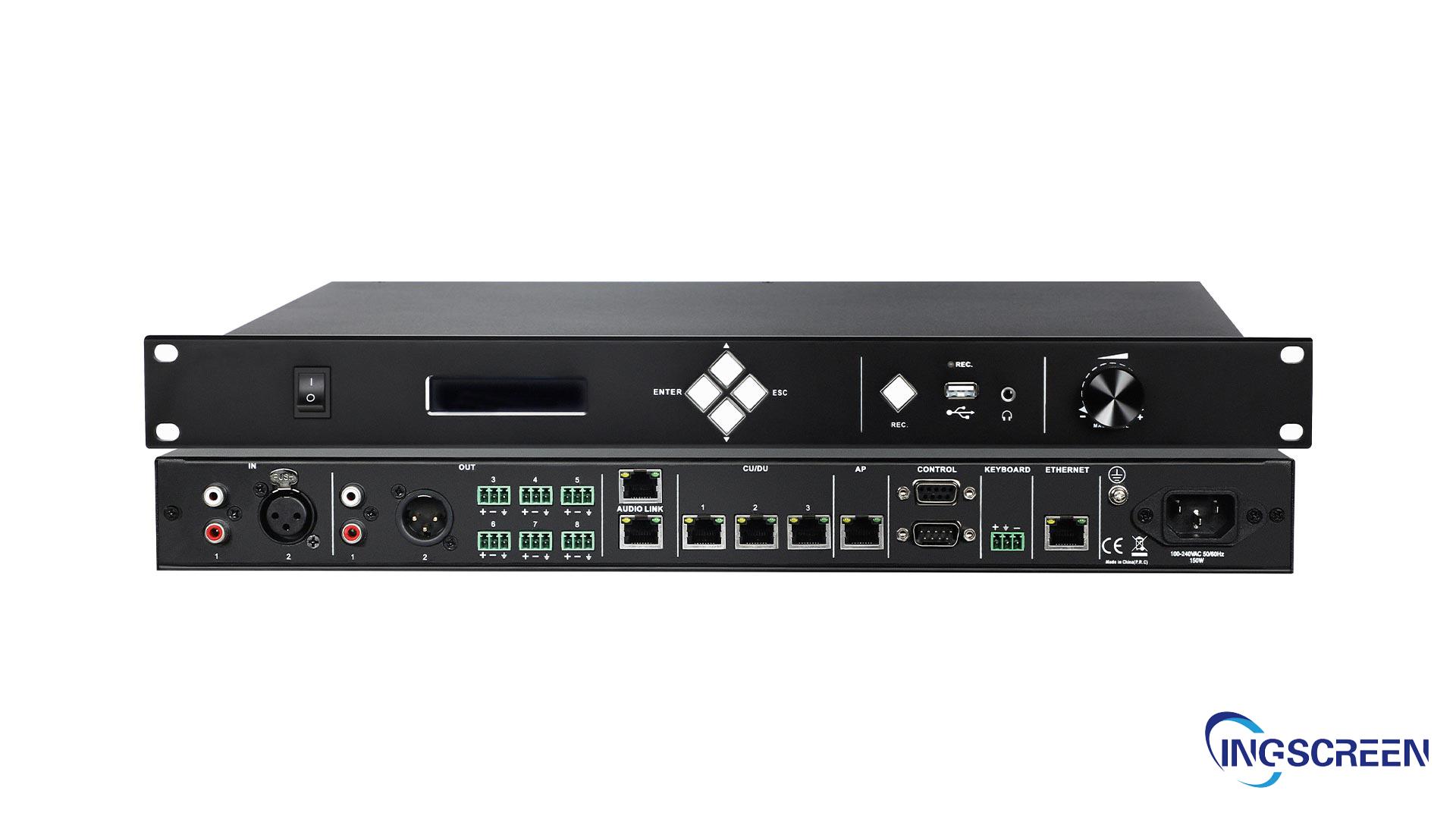

The central unit of the Vissonic INGS CONF MIDDLE 5000S conference system

Compact but versatile design

The product’s design reflects elegant yet compact and easy-to-use features. The usual CAT5e connection provides quick and easy meetings of any scale, the conference console has a workspace with a graphical interface, including a light reminder. Any participant of the meeting without special skills can quickly get to work. The easy-to-install, user-friendly central unit of the conference system is designed to provide more productive meetings.

Excellent sound performance

Thanks to advanced voice processing technology and the unique design of the microphone head, the device can accurately capture and restore the human voice through high-quality built-in speakers or an external hands-free system. The original AUDIO-LINK digital ring network technology, automatic Gain Control Volume (AGC)/ Automatic Frequency Control (AFC) technology helps to achieve higher volume without causing a howling effect, ensures that every spoken word is well understood.

A high-tech intelligence platform

Synchronization function, overtime reminder, multi-platform synchronization of voting results, network monitoring and meeting management, intelligent conference backup, real-time firmware updates worldwide, IT integration provides an intelligent platform for CLEACON series conferences.

Complete simple operation

The central unit is the center of the system, which provides power to all discussion consoles, controls cameras and connects to other third-party devices. The compact design of the 1U is easy to place anywhere, while maintaining restraint in all circumstances.

Simple operation with convenient recording

We try to use fewer buttons to make it easier to work, and the LCD screen obviously helps you follow the action in real time. The USB slot allows you to record every important discussion of the meeting to save all the useful information.

Features

● AUDIO-LINK’s unique digital ring network technology provides fully digital signal transmission and processing.

● One CAT5e cable for transmitting up to 64 channels of audio and other signals.

● All microphone units support audio, ID-independent output. Working with a voice recognition system to separate voice roles.

● High sound quality with lossless audio transmission technology, 48K audio sampling rate and 20 Hz~20 kHz frequency response.

● One conference controller can independently control and combine 4 conference rooms, can control a cascade of multiple conference controllers to combine and separate larger conference rooms (optional).

● The “Hand-in-Hand-Loop-Network” connection ensures uninterrupted operation of the system regardless of the change of the discussion panel or the presence of any faulty units.

● The sensitivity of the device’s microphone and the 8-segment equalizer are adjusted independently of each other.

● The conference controller can output a 16-segment equalizer to adjust the sound field; a pressure limit that can recognize the noise gate passed by the human voice.
Automatic AGC volume control; Automatic AFC feedback suppression and automatic mixing technology.

● Audio output using the split zone function, each zone is automatically adjusted according to the volume of the microphone position, which ensures capture over long distances without whistling.

● Echo cancellation, real-time remote two-way call with another conference controller or other third-party video conferencing terminal.

● USB recording, controller monitor, advanced noise reduction technology for clearer recording.

● System date, time management and speech countdown support.

● Optional DANTE output module with other DANTE hardware used.

● Can control 2 120W POE speakers through the main expansion unit, supports up to 16 POE speakers.
