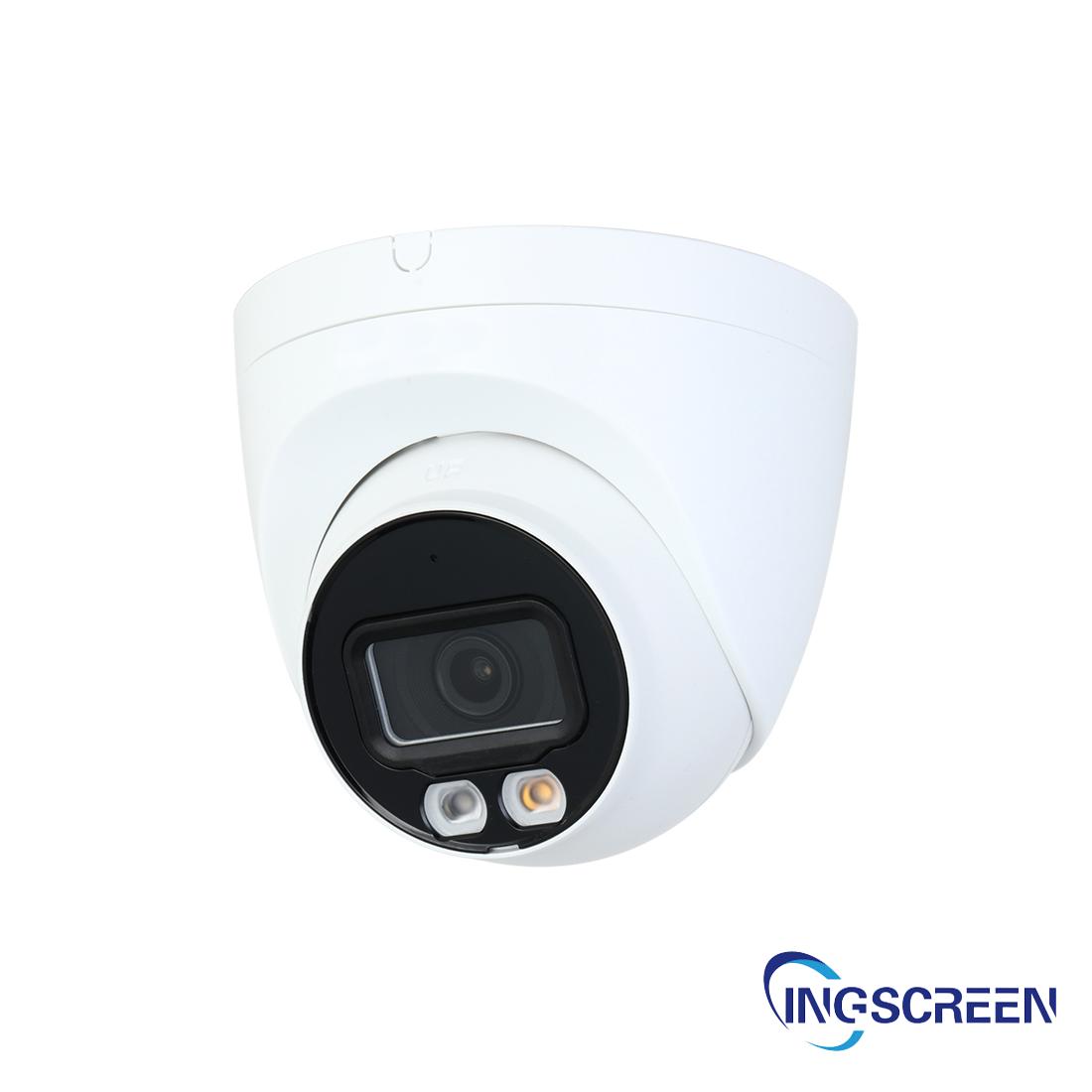

INGS-CAM-8MP-C Dome IP Video Camera
Camera
Matrix; 1/2.7” CMOS, 8 MP
Effective pixels (G×H); 3840×2160
ROM; 128 MB
RAM; 256 MB
Scan; Progressive
Electronic shutter; Auto, manual (1/3 s~1/100000 s)
Sensitivity; 0.008 lux (color, F1.6, 30 IRE)
0.0008 lux (b/w, F1.6, 30 IRE)
0 lux (backlight)
Signal/noise; >56 dB
Illumination range; ≤30 m (IR illumination) ≤30 m (LED illumination)
Backlight control; Auto, Manual
Backlight module; 1 IR diode
; 1 warm spectrum LED
Axis adjustment; Rotation: 0°~360°, Tilt: 0°~ 78°, Rotation: 0°~360°
The lens
Type; Fixed
Mounting type; Built-in (M12)
Focal length; 2.8 mm
Aperture; F1.6
Field of view; Horizontal: 111° / 87°
Vertical: 58° / 49°
Diagonal: 132° / 100°
Aperture control; No
Minimum focusing distance; 1.5 m / 1.9 m
O.N.R.I. Distance (DORI); For focal length; Detection; Observation; Recognition; Identification; 2.8 mm; 84.8 m; 33.9 m; 17 m; 8.5 m
Professional video analytics
Perimeter security; Line crossing detector, zone control (both functions with classification for people and transport)
Intelligent search; Works in conjunction with intelligent IP video recorders to perform detailed intelligent search, receive events and link events to video
Video
Video compression; H.265, H.264 (Base, Main, High), MJPEG (on an additional stream)
Optimized codecs; H.265+, H.264+
Frame rate; Main stream: 3840×2160 @ 1 fps ~ 20 fps
2688×1520 @ 1 fps ~ 25 fps
Additional stream 1: 704×576 @ 1 fps ~ 25 fps
*The values given for each video stream are the maximum; when multiple video streams are transmitted simultaneously, their frame rate will decrease depending on the available computing resources.
Number of threads; 2
Frame formats; 8M (3840×2160), 6M (3072×2048), 5M (3072×1728, 2880×1620), 4M (2688×1520), 3M (2048×1536, 2304×1296), 1080p (1920×1080), 960p (1280×960), 720p (1280×720), D1 (704×576), VGA (640×480), CIF (352×288)
Video stream control; CBR, VBR
Video stream size; H.264: 32 Kbit/s ~8192 Kbit/s
H.265: 12 Kbit/s ~8192 Kbit/s
Day/night mode; IR filter switching (auto, manual)
Background illumination compensation; BLC, HLC
Wide dynamic range; WDR (120 dB)
White balance; Auto, Natural, Street lighting, Outdoor, Manual, Zonal
Signal amplification; Auto, Manual
Noise reduction; 3D DNR
Motion detection; There are (4 zones)
Zones of Interest (RoI); There are (4 zones)
Intelligent illumination; There are
Image rotation; 90°, 180°, 270°
Mirroring; There is
Private areas; There are (4 zones)
Audio
Built-in microphone; Yes
Audio compression; G.711a, G.711mu, PCM, G.726
Alarm system
Alarming events; Missing SD card, filling SD card, SD card error, network failure, IP address conflict, unauthorized access, movement, Lens closure, Zone entry, Line crossing, audio detector alarm, Voltage change, SMD, Security error
Certification
Certificates; EN62368-1 (EU low voltage equipment)
Directive 2014/30/EU (EU EMS)
47 CFR FCC Part 15 Subpart B (EMC FCC)
UL60950-1 CAN/CSA C22.2 No.60950-1-07 (UL/cUL safety)
Power supply
Power supply; 12V (DC), PoE (802.3af)
Power consumption; Basic: 2.6W (12V), 3.3W (PoE)
Maximum (H.265, maximum resolution, all video streams, WDR, maximum intensity of LED backlight, video analytics): 5 W (12V), 5.9W (PoE)
Operating conditions
Operating temperature; -40°C ~ +55°C
Working humidity; ≤95%
Storage temperature; -40°C ~ +60°C
Storage humidity; ≤95%
Protection; IP67
Physical parameters
Body material; Metal, plastic
Dimensions; Ø 109.9 mm × 100.9 mm
Net Weight: 0.38 kg
Gross weight: 0.52 kg
Brand
INGS
Article number
DH-IPC-HDW2849TP-S-IL-0280B
Code
47525
In the package
30
Basic unit
pcs
Barcode
6923172581525
Volume
0.01 m3
Weight
0.55 kg
Guarantee
3 years old
